SUCTION AND FLUID MANAGEMENT SYSTEMS INSTALLATION

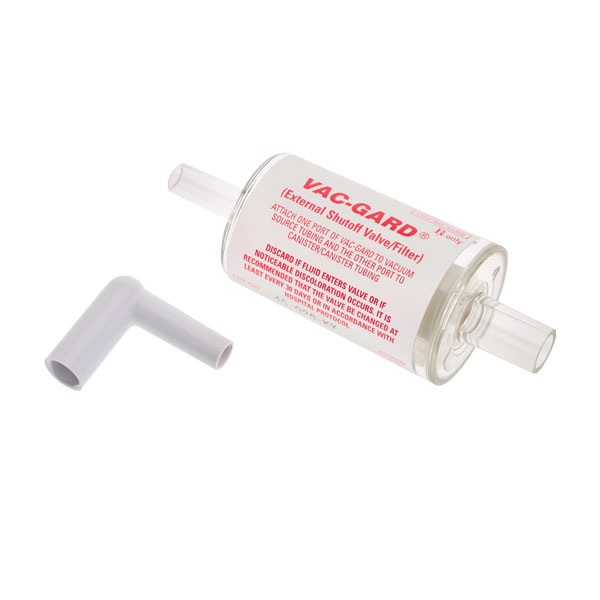

External VAC-GARD Shut-Off Valve
External VAC-GARD
![1. Select RECEPTAL® canister size and same size liner without integrated VAC-GARD® blue tubing insert external VAC-GARD® onto canister “T”.](http://www.amsino.com/assets/products/vac-gard-external-set-up-01.jpg)
1. Select RECEPTAL® canister size and same size liner without integrated VAC-GARD® blue tubing insert external VAC-GARD® onto canister “T”.
![2. Attach lid tubing to external VAC-GARD®. Connect vacuum tubing to canister “T”.](http://www.amsino.com/assets/products/vac-gard-external-set-up-02.jpg)
2. Attach lid tubing to external VAC-GARD®. Connect vacuum tubing to canister “T”.
![3. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/vac-gard-external-set-up-03.jpg)
3. Connect patient tubing to patient port. Cap all ports not in use.
EZE-VAC Suction Canister System
Single Canister
![1. Select canister size and secure lid to canister.](http://www.amsino.com/assets/products/eze-vac-single-canister-set-up-011.jpg)
1. Select canister size and secure lid to canister.
![2. Select support.](http://www.amsino.com/assets/products/eze-vac-single-canister-set-up-02.jpg)
2. Select support.
![3. Place canister in support, connect vacuum tubing to vacuum port elbow on lid.](http://www.amsino.com/assets/products/eze-vac-single-canister-set-up-03.jpg)
3. Place canister in support, connect vacuum tubing to vacuum port elbow on lid.
![4. Connect patient tubing to patient port elbow on lid. Cap all ports not in use.](http://www.amsino.com/assets/products/eze-vac-single-canister-set-up-04.jpg)
4. Connect patient tubing to patient port elbow on lid. Cap all ports not in use.
Multiple Canister
![1. Attach supports to floor stand. Select canister size and secure lids to canisters.](http://www.amsino.com/assets/products/eze-vax-multiple-canister-set-up-01.jpg)
1. Attach supports to floor stand. Select canister size and secure lids to canisters.
![2. Place canisters into supports. Connect vacuum tubing to vacuum port elbow on lid. Secure vacuum port caps on remaining canisters.](http://www.amsino.com/assets/products/eze-vax-multiple-canister-set-up-02.jpg)
2. Place canisters into supports. Connect vacuum tubing to vacuum port elbow on lid. Secure vacuum port caps on remaining canisters.
![3. Connect ortho port to adjacent patient port with tandem tubing (Item 43317-25). Repeat until all canisters are connected.](http://www.amsino.com/assets/products/eze-vax-multiple-canister-set-up-03.jpg)
3. Connect ortho port to adjacent patient port with tandem tubing (Item 43317-25). Repeat until all canisters are connected.
![4. Connect patient tubing to patient port elbow on lid.](http://www.amsino.com/assets/products/eze-vax-multiple-canister-set-up-04.jpg)
4. Connect patient tubing to patient port elbow on lid.
Canister Disconnect and Disposal
![1. Remove patient and vacuum tubing.](http://www.amsino.com/assets/products/receptal-canister-disconnect-disposal-01.jpg)
1. Remove patient and vacuum tubing.
![2. Cap all ports with tethered caps provided.](http://www.amsino.com/assets/products/receptal-canister-disconnect-disposal-02.jpg)
2. Cap all ports with tethered caps provided.
Additional Comments
- The canister and lid are disposable and intended for single use.
- Amsino recommends exercising universal precautions during handling and disposal.
RECEPTAL ACCU-MEASURE Canister
RECEPTAL ACCU-MEASURE
![1. Select RECEPTAL® canister size and attach ACCU-MEASURE® bracket.](http://www.amsino.com/assets/products/RECEPTAL-ACCU-MEASURE-set-up-01.jpg)
1. Select RECEPTAL® canister size and attach ACCU-MEASURE® bracket.
![2. Slide 250 mL ACCU-MEASURE® device onto bracket.](http://www.amsino.com/assets/products/RECEPTAL-ACCU-MEASURE-set-up-02.jpg)
2. Slide 250 mL ACCU-MEASURE® device onto bracket.
![3. Follow RECEPTAL® single liner set-up. Use tandem tubing to connect vacuum port of ACCU-MEASURE® to patient port of liner lid.](http://www.amsino.com/assets/products/RECEPTAL-ACCU-MEASURE-set-up-03.jpg)
3. Follow RECEPTAL® single liner set-up. Use tandem tubing to connect vacuum port of ACCU-MEASURE® to patient port of liner lid.
![4. Connect patient tubing to ACCU-MEASURE® patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/RECEPTAL-ACCU-MEASURE-set-up-04.jpg)
4. Connect patient tubing to ACCU-MEASURE® patient port. Cap all ports not in use.
RECEPTAL Canisters
For RECEPTAL Single, Tandem, Multiple Canister and Liner Set Up.
Single Canister and Liner
![1. Place canister into support.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-01.jpg)
1. Place canister into support.
![2. Insert same size liner with VAC-GARD® and secure liner lid to canister.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-02.jpg)
2. Insert same size liner with VAC-GARD® and secure liner lid to canister.
![3. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-03.jpg)
3. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.
![4. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-04.jpg)
4. Connect patient tubing to patient port. Cap all ports not in use.
Tandem Canister and Liner
![1. Select canister size and support. Place canisters into support.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-01.jpg)
1. Select canister size and support. Place canisters into support.
![2. Connect canister “T”s with vacuum tubing.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-02.jpg)
2. Connect canister “T”s with vacuum tubing.
![3. Insert same size liners (1 with and 1 without VAC-GARD®), secure liner lids to canisters.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-03.jpg)
3. Insert same size liners (1 with and 1 without VAC-GARD®), secure liner lids to canisters.
![4. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-04.jpg)
4. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.
![5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-05.jpg)
5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing.
![6. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-06.jpg)
6. Connect patient tubing to patient port. Cap all ports not in use.
Multiple Canister and Liner
![1. Select canister size and supports. Attach supports to floor stand.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-01.jpg)
1. Select canister size and supports. Attach supports to floor stand.
![2. Insert canisters into supports.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-02.jpg)
2. Insert canisters into supports.
![3. Insert same size liners (1 with VAC-GARD® and remaining liners without), secure liner lids to canisters.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-03.jpg)
3. Insert same size liners (1 with VAC-GARD® and remaining liners without), secure liner lids to canisters.
![4. Interconnect canister “T”s with vacuum tubing. Attach the lid VAC-GARD® blue tubing and vacuum tubing to the remaining open “T” ports.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-04.jpg)
4. Interconnect canister “T”s with vacuum tubing. Attach the lid VAC-GARD® blue tubing and vacuum tubing to the remaining open “T” ports.
![5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing. Repeat process until all liners are connected.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-05.jpg)
5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing. Repeat process until all liners are connected.
![6. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-06.jpg)
6. Connect patient tubing to patient port. Cap all ports not in use.
RECEPTAL Liners
- Single Canister and Liner
- Tandem Canister and Liner
- Multiple Canister and Liner
- Liner Disconnect and Disposal
Single Canister and Liner
![1. Place canister into support.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-01.jpg)
1. Place canister into support.
![2. Insert same size liner with VAC-GARD® and secure liner lid to canister.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-02.jpg)
2. Insert same size liner with VAC-GARD® and secure liner lid to canister.
![3. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-03.jpg)
3. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.
![4. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/product-single-canister-liner-set-up-04.jpg)
4. Connect patient tubing to patient port. Cap all ports not in use.
Tandem Canister and Liner
![1. Select canister size and support. Place canisters into support.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-01.jpg)
1. Select canister size and support. Place canisters into support.
![2. Connect canister “T”s with vacuum tubing.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-02.jpg)
2. Connect canister “T”s with vacuum tubing.
![3. Insert same size liners (1 with and 1 without VAC-GARD®), secure liner lids to canisters.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-03.jpg)
3. Insert same size liners (1 with and 1 without VAC-GARD®), secure liner lids to canisters.
![4. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-04.jpg)
4. Connect lid VAC-GARD® blue tubing and vacuum tubing to canister “T”.
![5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-05.jpg)
5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing.
![6. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/product-tandem-canister-liner-set-up-06.jpg)
6. Connect patient tubing to patient port. Cap all ports not in use.
Multiple Canister and Liner
![1. Select canister size and supports. Attach supports to floor stand.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-01.jpg)
1. Select canister size and supports. Attach supports to floor stand.
![2. Insert canisters into supports.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-02.jpg)
2. Insert canisters into supports.
![3. Insert same size liners (1 with VAC-GARD® and remaining liners without), secure liner lids to canisters.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-03.jpg)
3. Insert same size liners (1 with VAC-GARD® and remaining liners without), secure liner lids to canisters.
![4. Interconnect canister “T”s with vacuum tubing. Attach the lid VAC-GARD® blue tubing and vacuum tubing to the remaining open “T” ports.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-04.jpg)
4. Interconnect canister “T”s with vacuum tubing. Attach the lid VAC-GARD® blue tubing and vacuum tubing to the remaining open “T” ports.
![5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing. Repeat process until all liners are connected.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-05.jpg)
5. Connect lid tandem tubing (clear) to patient port of the lid with blue tubing. Repeat process until all liners are connected.
![6. Connect patient tubing to patient port. Cap all ports not in use.](http://www.amsino.com/assets/products/receptal-multiple-canister-liner-set-up-06.jpg)
6. Connect patient tubing to patient port. Cap all ports not in use.
Liner Disconnect and Disposal
![1. Leave vacuum switched on at the end of the procedure.](http://www.amsino.com/assets/products/receptal-liner-disconnect-disposal-01.jpg)
1. Leave vacuum switched on at the end of the procedure.
![2. Remove patient suction tubing from patient port and discard.](http://www.amsino.com/assets/products/receptal-liner-disconnect-disposal-02.jpg)
2. Remove patient suction tubing from patient port and discard.
![3. Disconnect liner lid tubing from canister “T” and immediately reconnect to patient port with push and twist motion (friction lock).](http://www.amsino.com/assets/products/receptal-liner-disconnect-disposal-03.jpg)
3. Disconnect liner lid tubing from canister “T” and immediately reconnect to patient port with push and twist motion (friction lock).
Additional Comments
- Cap any port not in use.
- Do not use lid tubing as a handle to lift liner.
- Amsino recommends exercising universal precautions during handling and disposal.
